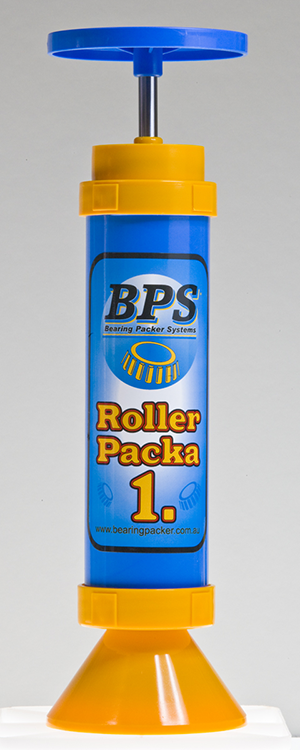

Roller Packa 1: Technical Information
On this page you'll find a stack of useful technical information about Roller Packa 1. If you have any questions about the product, feel free to contact us to find out more.
Technical Data
Dimensions: 330mm (H) x 104mm (W) X 104mm (D)
Weight: 580g / 21oz
Bearing Size Range: 35mm - 95mm (NB: Outermost Bearing Diameter)
Bearing Type: Any open cage roller bearing or unsealed ball bearing
Grease Type: See bearing manufacturer for exact specification
Preparing Your Roller Packa for Use:IMPORTANT: Always use protective gloves when packing wheel bearings with grease.
|

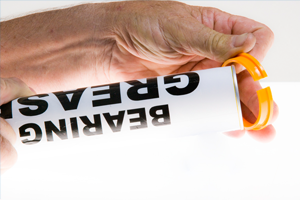

Place retaining clip on base of cartridge.
(14oz / 400gm Packa only)
|
 |

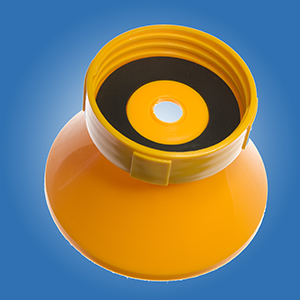

Ensure black gasket is in place in yellow outer cone.
|
 |

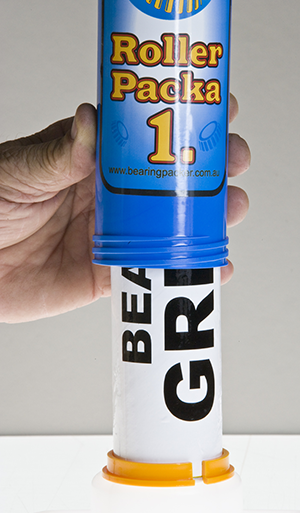

Slide the blue sleeve over the cartridge.
|
 |

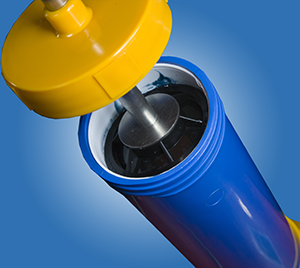

Insert the Piston into the cartridge and screw the yellow cap onto the blue tube.
|
 |
Your Packa is ready to go! |
|

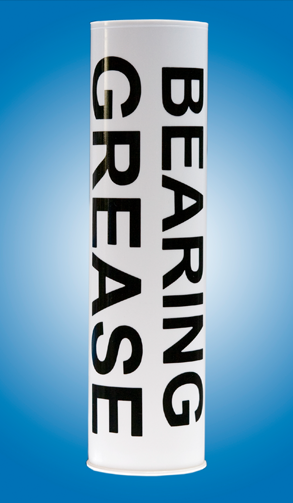

TIP: Don't discard the used 450g grease cartridge: it is perfect as a replacement cylinder liner for your Roller Cleaner 1. |
To Grease a Bearing Using the Cone Plug Method
 |

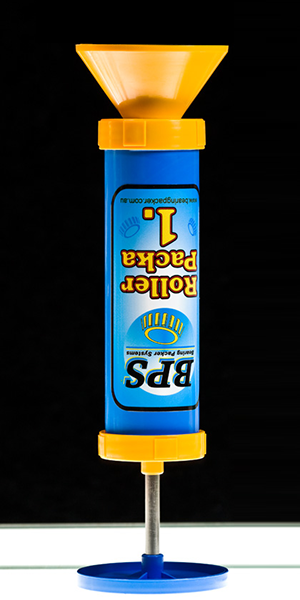

Invert the Packa and on the workbench. |
 |
Remove the blue end cap and blue cone plug. |
|
|
 |

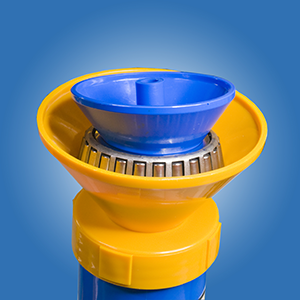

Place the bearing and the cone inside the Packa as shown.
|
 |

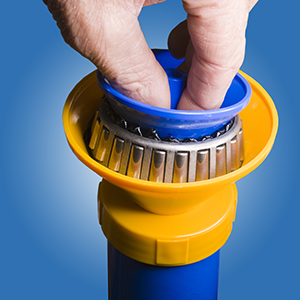

Apply downward pressure ONLY on the blue cone, until bearing is greased sufficiently. |
 |

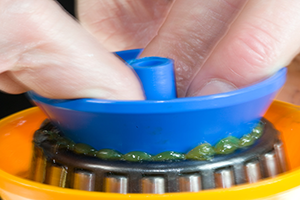

Lift the bearing out using the blue cone plug and repeat for each bearing. |
 |

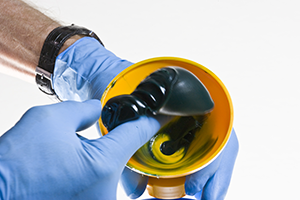

When all bearings have been packed, use one finger to remove the grease from the yellow cone, and use the grease to pack the bearing hub. |
 |

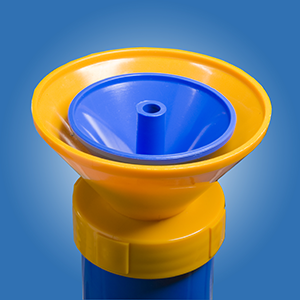

Place the blue cone plug back into the yellow cone to seal the Packa. |
 |

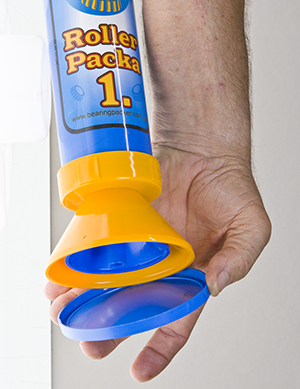

Return the end cap for clean storage, or...
|
 |

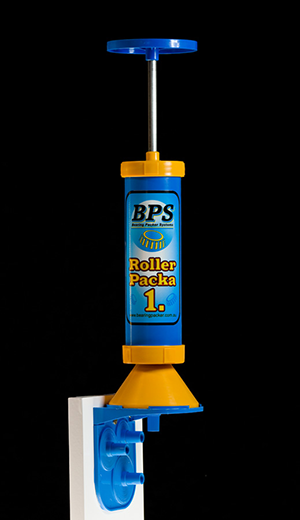

...return the Packa to the Shelf and Plate Holder.
|
To Grease a Bearing Using the Plate Plug Method
(Used for larger 4x4, aircraft and light truck / commercial vehicle wheel roller bearings)
|
Invert the Packa and on the workbench. |
 |

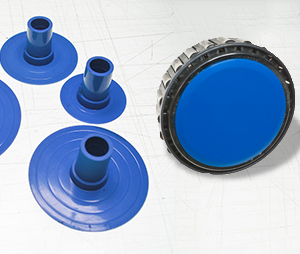

Select a plate to suit the bearing from the four plates supplied with the Packa.
NOTE: Plate must fit as shown, blanking off the axle base whilst keeping cage unobstructed,
|
 |

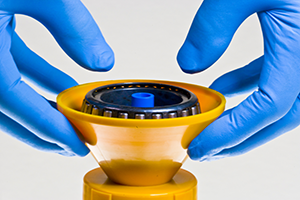

Place the plate and bearing into the yellow cone.

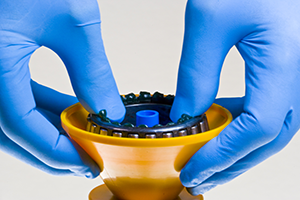

Clamp fingers firmly against yellow cone as shown.
|
|

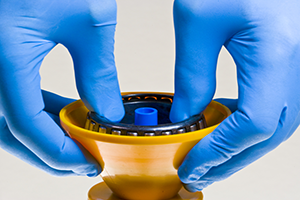

Apply pressure with thumbs to inner race of the bearing. The plate will rise on the grease. Take care to ensure the plate is centered, adjust if necessary. |
|
Whilst holding this clamping force, press the entire Packa downwards until the bearing is adequately greased. |
 |

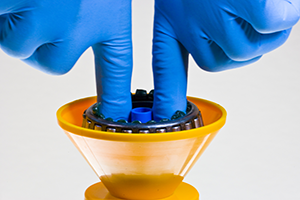

Lift the bearing out of the cone for fitment. |
 |

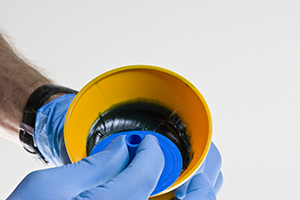

When all bearings have been packed, remove the plate, and the grease off into the outer cone. |
 |

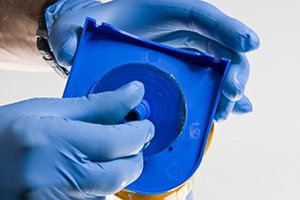

Place plates on Storage System. Residual grease will keep plates in place and keep dust away from plate surface. |
|
